Pump Puller, Up-Z-Dazy Pump Puller 30XL
Product Number: UPZ30XL
$4,495.00
|
| Description |

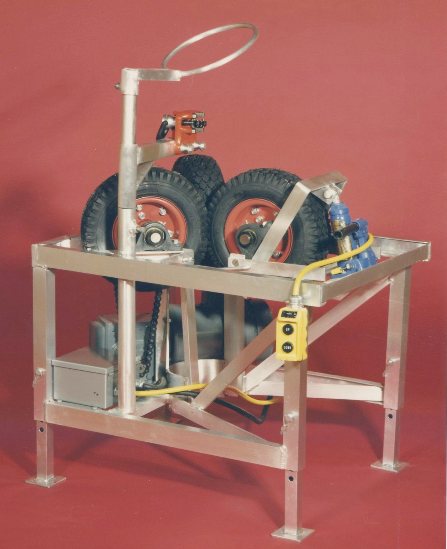

Up-Z-Dazy® Pump Puller, Model 30XL Heavy Duty (Aluminum Frame)
Portable, Light-weight, Economical
Features:
- Rugged welded aluminum frame
- Swinging pipe vise to hold steep pipe - optional
- Switch push to operate remote waterproof control
- Motor and magnetic reversing contactor are waterproof
- Pull wheels are stud type tires with tubes. Sure grip.
- Hydraulic pressure on pull wheels to handle any load requirements
- Worm drive gear box with heavy No. 50 roller chain drive to prevent drift
- Overhead pipe guide extends to 10' above machine (pipe not furnished) -optional
- Manual winch to lift or set pipe when working in a pit or ditch. Option Model 2010. (not included with machine.)
Specifications:
- Motor - 1 H.P., 115-V.A.C (Special Order 220-V.A.C.)
- Switch - waterproof push button 8' lead
- Capacity - 600 lb. load
- Will Handle - 1" to 1 1/2" coil or semi-rigid pipe or up to 2" galvanized pipe
- Will also pull or set 2 pipe jet systems
- Speed - set or pull 28' F.P.M.
- Size - 24"(w)x30"(l)x25"(h)
- Weight - 155 lbs.
- Overhead Guide - optional
- Wheel kit with handles, winch, swing vise - optional
Optional Parts
UPZ2 - Winch for Pump Puller
UPZ3 - Vice for Pump Puller
UPZ4 - Wheel Kit for Pump Puller
UPZ5 - Guide Ring for Pump Puller
Pump Puller: - optional
- Winch (No.1) will fit any Model 30XL
- Winch Attachment - (sold separately)
- 800 lb. Hand Cable Winch
- Winch lifts on or off - no bolts
- 12' cable to pull or set pump in ditch
- Wheel Kit (No. 2) - on or off in seconds. Can be attached permanently with two bolts furnished with kit
- Leg kit extends down 7"
|
|
|
| |
|
